CSU-W1 Spinning Disk/High Speed Widefield
Objectives
| Objective |
Zyla nm/pixel |
EMCCD HighRes nm/pixel |
EMCCD LOV nm/pixel |
| 1. Plan Apo λ 10x / 0.45 |
649.3 |
667.1 |
1029 |
| 2. Plan Apo λ 20x / 0.75 |
325.1 |
334.1 |
649.2 |
| 3. Apo LWD 40x / 1.15 WI |
163.9 |
169.1 |
328.6 |
| 4. Plan Flour 60x / 1.3 Oil |
163.9 |
169.1 |
328.6 |
| 5. Plan Apo VC 60x / 1.4 Oil |
108.3 |
111.9 |
217.5 |
| 6. Apo TIRF 100x / 1.49 Oil |
64.6 |
66.8 |
130.0 |
(only 10x and 20x are installed on Microscope; others are in cabinet)
Note: EMCCD “High Res” has a 2X magnifier to make it a simular pixel size as the Zyla
Filter Turret (top)
- Photobleaching / photactivation cube (has an OD2 excitation filter
and a TB 355-405-473 dichroic mirror)
Filter Turret (bottom)
- Sedat Quad (Semrock)
- CFP/YFP(Semrock)
- Empty
- Empty
- Empty
- Analyzer
Emission Wheel (for Widefield)
- Open
- 440/521/607/700 Multipass
- 440/40
- 525/30
- 607/36
- 684/34
- 472/30
- 542/27
- 464/547 Multipass
Emission Wheel (for W1)
- 447/60
- 525/50
- 607/36
- 685/40
- 5FF01-835/70-25
- empty
- empty
- empty
- empty
- empty
Dichroics in the W1
- CSU-W1 Quad Dichroic 405/445/514/785
- CSU-W1 Penta Dichroic 405/488/561/640/755
Lasers
- 405 nm 100mW
- 488 nm 150 mW
- 561 100 mW
- 639 160mW
- 785 150mW
Hardware
- Andor Zyla 5.2 (Right Camera Port)
- Andor Zyla 4.2 (USB3, CSU-W1 left port)
- Andor iXon Ultra DU888 1k x 1k EMCCD (CSU-W1 back port)
- Nikon Ti with PFS3, Stage up with two turrets
- ASI XYZ stage (150 um travel piezo Z; COM8 Baud 115200)
- Lumencor Spectra-X (COM4, Baud 9600) with ESIO AOTF controller (COM5, Baud 57600)
- Sutter Emission Wheel and Lambda 10-B controller (COM9, Baud 128000)
- Sutter TLED, White
- Rapp Optoelectronic UGA-40 photobleaching system (COM6)
- Vortran 405 and 473 nm lasers for photoactivation and photobleaching
- Arduino (BF shutter/Zoom encoder; COM3)
- W1 Spinning Disk with Borealis upgrade (Left Camera Port; COM7, Baud 115200)
- Vortran VersaLase (8) - 5 line laser launch (405-100, 488-150,
561-100, 639-160 and 785-150 installed, MM 50μm core with 2m fiber and
FC/PC output)
- TriggerScope (COM10)
Hardware Documentation
📄 Triggering a Device from Multiple Cameras (Arduino Setup)
↗ Open PDF in new tab
| ⬇ Download PDF
📄 Interlocking Multiple Devices on a Microscope
↗ Open PDF in new tab
| ⬇ Download PDF
📄 BNC Breakout Board Images
↗ Open PDF in new tab
| ⬇ Download PDF
📄 BNC Breakout Board Wiring Diagram
↗ Open PDF in new tab
| ⬇ Download PDF
Firmware / Software
- Ti firmware v5.0 (Combination N)
- Ti Driver v2.0.5.1
- TiControl v4.4.1
- Micro Manager 2.0 (how to cite Micro
Manager: https://micro-manager.org/Citing_Micro-Manager)
- Current build Nightly build: 2025-06-10
PC
Photobleaching
Open the Projector plugin in Micro-mananger to control the
photobleaching system. Instructions on using the Projector plugin are
here. To control the laser powers, open the Vortran control
panel. To calibrate either laser, you can use an 0.01 mg/ml fluorescein
solution, imaged in the FITC channel. A bottle of this solution is in
the cabinet. Right now there is no way to save the calibration, so if
you switch lasers you'll need to recalibrate.
For photoconverting mEos2, using the correct laser power is critical. If
the laser power is too high, the protein will bleach instead of
photoconverting. With the current OD2 filter, a 405 nm power of 50 mW
works well (once we switch to an OD1 filter, use 5 mW). The Rapp unit
ignores the spot dwell time parameter; to control how long the area is
converted, adjust the loop parameter. For the laser power above, 10
loops gives good photoconversion and is still relatively rapid (~1s for
areas of a few μm^2^ at 100x). For bleaching GFP you'll need to use
higher power.

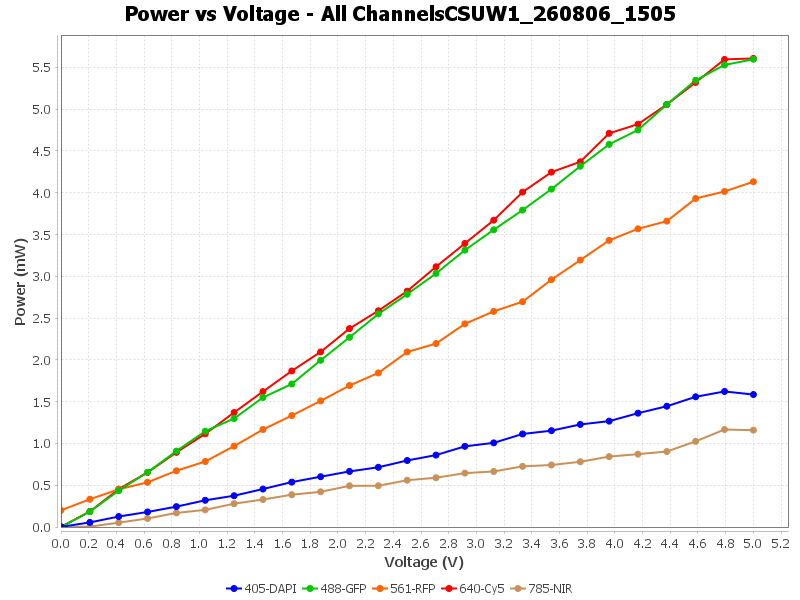

Laser powers measured out of 10x objective, each laser at 50 mW power
(no ND filter in)
Quickstart Guide
📄 FRAP Guide
↗ Open PDF in new tab
| ⬇ Download PDF
